商品説明

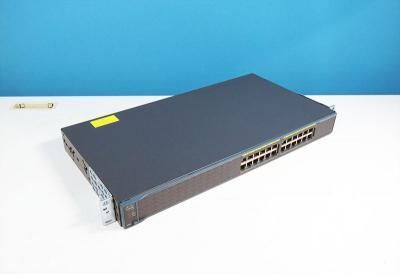

WS-C2960-24-S V08 CISCO LAN Lite ソフトウェア搭載スイッチ
パスワード/コンフィグレーションは初期化済みです。
本体に使用感、擦りキズ等があります。
商品詳細
メーカー:Cisco Systems
製品名:WS-C2960-24-S V08 CISCO
IOS:Version 12.2(55)SE5
LAN:イーサネット 10/100 ポート × 24
SW Image:C2960-LANLITEK9-M
スイッチングファブリック:50 Gbps
本体サイズ:445x44x236 mm
重量:3600g
付属品
電源ケーブル
起動ログ
Using driver version 1 for media type 1
Base ethernet MAC Address:
Xmodem file system is available.
The password-recovery mechanism is enabled.
Initializing Flash...
mifs[2]: 0 files, 1 directories
mifs[2]: Total bytes : 3870720
mifs[2]: Bytes used : 1024
mifs[2]: Bytes available : 3869696
mifs[2]: mifs fsck took 1 seconds.
mifs[3]: 541 files, 19 directories
mifs[3]: Total bytes : 27998208
mifs[3]: Bytes used : 12152320
mifs[3]: Bytes available : 15845888
mifs[3]: mifs fsck took 7 seconds.
...done Initializing Flash.
done.
Loading "flash:/c2960-lanlitek9-mz.122-55.SE5/c2960-lanlitek9-mz.122-55.SE5.bin"...
File "flash:/c2960-lanlitek9-mz.122-55.SE5/c2960-lanlitek9-mz.122-55.SE5.bin" uncompressed and installed, entry point: 0x3000
executing...
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software, C2960 Software (C2960-LANLITEK9-M), Version 12.2(55)SE5, RELEASE SOFTWARE (fc1)
Technical Support:
Copyright (c) 1986-2012 by Cisco Systems, Inc.
Compiled Thu 09-Feb-12 19:11 by prod_rel_team
Image text-base: 0x00003000, data-base: 0x01400000
Initializing flashfs...
Using driver version 1 for media type 1
mifs[3]: 0 files, 1 directories
mifs[3]: Total bytes : 3870720
mifs[3]: Bytes used : 1024
mifs[3]: Bytes available : 3869696
mifs[3]: mifs fsck took 0 seconds.
mifs[3]: Initialization complete.
mifs[4]: 541 files, 19 directories
mifs[4]: Total bytes : 27998208
mifs[4]: Bytes used : 12152320
mifs[4]: Bytes available : 15845888
mifs[4]: mifs fsck took 1 seconds.
mifs[4]: Initialization complete.
...done Initializing flashfs.
Checking for Bootloader upgrade.. not needed
POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : Begin
POST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status Passed
POST: PortASIC CAM Subsystem Tests : Begin
POST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status Passed
Waiting for Port download...Complete
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
If you require further assistance please contact us by sending email to
export@cisco.com.
cisco WS-C2960-24-S (PowerPC405) processor (revision N0) with 65536K bytes of memory.
Processor board ID FCQ1703X0QR
Last reset from power-on
1 Virtual Ethernet interface
24 FastEthernet interfaces
The password-recovery mechanism is enabled.
64K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address :
Motherboard assembly number : 73-12613-06
Power supply part number : 341-0097-03
Motherboard serial number :
Power supply serial number :
Model revision number : N0
Motherboard revision number : A0
Model number : WS-C2960-24-S
System serial number :
Top Assembly Part Number : 800-32799-02
Top Assembly Revision Number : A0
Version ID : V08
CLEI Code Number : COMSJ00ARE
Hardware Board Revision Number : 0x0A
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 24 WS-C2960-24-S 12.2(55)SE5 C2960-LANLITEK9-M
IPV6 CAM MASK WRITE maskIndex 6
IPV6 CAM MASK WRITE maskIndex 5
IPV6 CAM MASK WRITE maskIndex 4
Press RETURN to get started!
*Mar 1 00:00:35.995: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down
*Mar 1 00:00:37.169: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for type vlan
*Mar 1 00:00:57.948: %SYS-5-RESTART: System restarted --
Cisco IOS Software, C2960 Software (C2960-LANLITEK9-M), Version 12.2(55)SE5, RELEASE SOFTWARE (fc1)
Technical Support:
Copyright (c) 1986-2012 by Cisco Systems, Inc.
Compiled Thu 09-Feb-12 19:11 by prod_rel_team
--- System Configuration Dialog ---
Enable secret warning
----------------------------------
In order to access the device manager, an enable secret is required
If you enter the initial configuration dialog, you will be prompted for the enable secret
If you choose not to enter the intial configuration dialog, or if you exit setup without setting the enable secret,
please set an enable secret using the following CLI in configuration mode-
enable secret 0
----------------------------------
Would you like to enter the initial configuration dialog? [yes/no]:
