商品説明

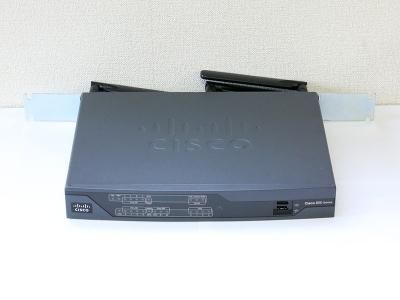

Model Cisco 892-W CISCO892W-AGN-P-K9 V03
Cisco Systems サービス統合型ルータ 初期化済み
動作確認済み、中古品です。
設定は、工場出荷時に初期化済みです。

商品詳細
メーカー:Cisco Systems
製品名:CISCO892W-AGN-P-K9 V03
ポート:FE x8/FE-WAN x1/GbE-WAN x1/ISDN
無線規格:802.11a/b/g/n
サイズ:4.82cm x 32.51cm x 26.41cm
重量:2.49kg(最大)
IOS:Version 12.4(22r)YB

付属品
ACアダプタ
ラックマウントキット

起動ログ

System Bootstrap, Version 12.4(22r)YB3, RELEASE SOFTWARE (fc1)
Technical Support: ttp://www.cisco.com/techsupport
Copyright (c) 2009 by cisco Systems, Inc.

C890 platform with 524288 Kbytes of main memory

Readonly ROMMON initialized
program load complete, entry point: 0x80020000, size: 0x26f2238
Self decompressing the image : [OK]

Restricted Rights Legend

Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.

cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706



Cisco IOS Software, C890 Software (C890-UNIVERSALK9-M), Version 15.1(4)M3, RELEASE SOFTWARE (fc1)
Technical Support: ttp://www.cisco.com/techsupport
Copyright (c) 1986-2011 by Cisco Systems, Inc.
Compiled Wed 07-Dec-11 00:20 by prod_rel_team


This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
ttp://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to
export@cisco.com.

Installed image archive
Cisco 892 (MPC8300) processor (revision 1.0) with 498688K/25600K bytes of memory.
Processor board ID FGL1606236V

9 FastEthernet interfaces
2 Gigabit Ethernet interfaces
1 ISDN Basic Rate interface
1 terminal line
1 Virtual Private Network (VPN) Module
1 cisco Embedded AP (s)
256K bytes of non-volatile configuration memory.
250880K bytes of ATA CompactFlash (Read/Write)


--- System Configuration Dialog ---

Would you like to enter the initial configuration dialog? [yes/no]:

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!By default, the following "voice service voip"         !!
!!sub-command is enabled:                                !!
!!   ip address trusted authenticate                     !!
!!                                                       !!
!!The command enables the ip address authentication      !!
!!on incoming H.323 or SIP trunk calls for toll fraud    !!
!!prevention supports.                                   !!
!!                                                       !!
!!Please use "show ip address trusted list" command      !!
!!to display a list of valid ip addresses for incoming   !!
!!H.323 or SIP trunk calls.                              !!
!!                                                       !!
!!Additional valid ip addresses can be added via the     !!
!!following command line:                                !!
!!  voice service voip                                   !!
!!   ip address trusted list                             !!
!!    ipv4 ipv4-address [ipv4 network-mask]              !!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!


Press RETURN to get started!
