商品説明

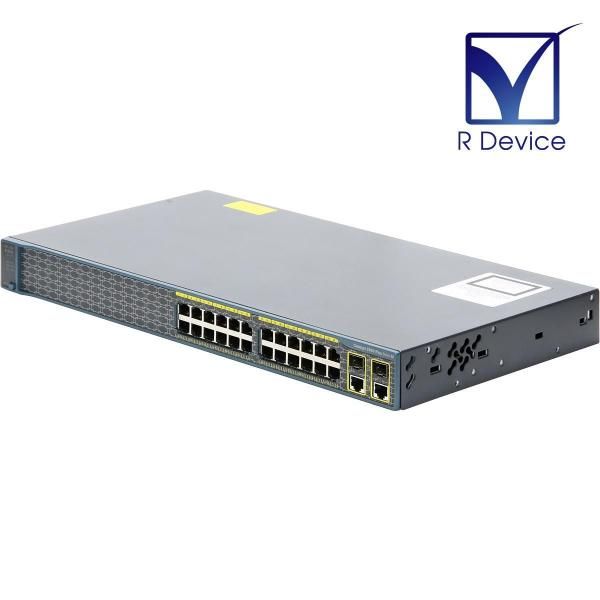

Catalyst 2960-24PC-L Cisco Systems
10/100 PoEポート x24/デュアルパーパスポート x2 1000/SFP
動作確認済み、中古品です。
設定は、工場出荷時に初期化済みです。
商品詳細
メーカー:Cisco Systems
製品名:Catalyst 2960-24PC-L
10/100 イーサネット:24
アップリンク インターフェイス:SFP x2 または 1000BASE-T x2
フラッシュ メモリ:64MB
DRAM:128MB
IOS:12.2(44)SE6
付属品
電源ケーブル
起動ログ
Using driver version 1 for media type 1
Base ethernet MAC Address:
Xmodem file system is available.
The password-recovery mechanism is enabled.
Initializing Flash...
mifs[2]: 0 files, 1 directories
mifs[2]: Total bytes : 3870720
mifs[2]: Bytes used : 1024
mifs[2]: Bytes available : 3869696
mifs[2]: mifs fsck took 1 seconds.
mifs[3]: 525 files, 19 directories
mifs[3]: Total bytes : 27998208
mifs[3]: Bytes used : 10747392
mifs[3]: Bytes available : 17250816
mifs[3]: mifs fsck took 6 seconds.
...done Initializing Flash.
done.
Loading "flash:c2960-lanbasek9-mz.122-44.SE6/c2960-lanbasek9-mz.122-44.SE6.bin
File "flash:c2960-lanbasek9-mz.122-44.SE6/c2960-lanbasek9-mz.122-44.SE6.bin" uncompressed and installed, entry point: 0x3000
executing...
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS Software, C2960 Software (C2960-LANBASEK9-M), Version 12.2(44)SE6, RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2009 by Cisco Systems, Inc.
Compiled Mon 09-Mar-09 18:10 by gereddy
Image text-base: 0x00003000, data-base: 0x01100000
Initializing flashfs...
Using driver version 1 for media type 1
mifs[3]: 0 files, 1 directories
mifs[3]: Total bytes : 3870720
mifs[3]: Bytes used : 1024
mifs[3]: Bytes available : 3869696
mifs[3]: mifs fsck took 0 seconds.
mifs[3]: Initialization complete.
mifs[4]: 525 files, 19 directories
mifs[4]: Total bytes : 27998208
mifs[4]: Bytes used : 10747392
mifs[4]: Bytes available : 17250816
mifs[4]: mifs fsck took 0 seconds.
mifs[4]: Initialization complete.
...done Initializing flashfs.
Checking for Bootloader upgrade.. not needed
POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : Begin
POST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status Passed
front_end/ (directory)
extracting front_end/fe_type_3 (75656 bytes)
extracting front_end/front_end_ucode_info (129 bytes)
extracting front_end/fe_type_4 (75656 bytes)
extracting ucode_info (76 bytes)
POST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status Passed
POST: PortASIC CAM Subsystem Tests : Begin
POST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status Passed
Waiting for Port download...Complete
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
ttp://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
cisco WS-C2960-24PC-L (PowerPC405) processor (revision C0) with 61440K/4088K bytes of memory.
Processor board ID FOC1332W2FS
Last reset from power-on
1 Virtual Ethernet interface
24 FastEthernet interfaces
2 Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.
64K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address :
Motherboard assembly number : 73-11305-05
Power supply part number : 341-0266-02
Motherboard serial number :
Power supply serial number :
Model revision number : C0
Motherboard revision number : A0
Model number : WS-C2960-24PC-L
System serial number :
Top Assembly Part Number : 800-29397-02
Top Assembly Revision Number : B0
Version ID : V02
CLEI Code Number : COMS410ARB
Hardware Board Revision Number : 0x01
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 26 WS-C2960-24PC-L 12.2(44)SE6 C2960-LANBASEK9-M
Press RETURN to get started!
Show Version
Switch>en
Switch#sh ve
Cisco IOS Software, C2960 Software (C2960-LANBASEK9-M), Version 12.2(44)SE6, RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2009 by Cisco Systems, Inc.
Compiled Mon 09-Mar-09 18:10 by gereddy
Image text-base: 0x00003000, data-base: 0x01100000
ROM: Bootstrap program is C2960 boot loader
BOOTLDR: C2960 Boot Loader (C2960-HBOOT-M) Version 12.2(44r)SE1, RELEASE SOFTWARE (fc2)
Switch uptime is 1 minute
System returned to ROM by power-on
System image file is "flash:c2960-lanbasek9-mz.122-44.SE6/c2960-lanbasek9-mz.122-44.SE6.bin"
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found at:
ttp://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
cisco WS-C2960-24PC-L (PowerPC405) processor (revision C0) with 61440K/4088K bytes of memory.
Processor board ID FOC1332W2FS
Last reset from power-on
1 Virtual Ethernet interface
24 FastEthernet interfaces
2 Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.
64K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address : 00:26:CA:37:B8:00
Motherboard assembly number : 73-11305-05
Power supply part number : 341-0266-02
Motherboard serial number :
Power supply serial number :
Model revision number : C0
Motherboard revision number : A0
Model number : WS-C2960-24PC-L
System serial number :
Top Assembly Part Number : 800-29397-02
Top Assembly Revision Number : B0
Version ID : V02
CLEI Code Number : COMS410ARB
Hardware Board Revision Number : 0x01
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 26 WS-C2960-24PC-L 12.2(44)SE6 C2960-LANBASEK9-M
Configuration register is 0xF
