商品説明

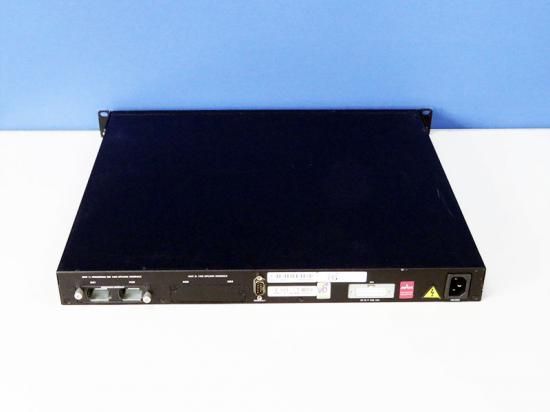

Power Connect 6248 DELL
ギガビット・イーサネット・スイッチングポートx48
動作確認済み、中古品です。
ANATEL 2066-06-2725のOEM品です。
商品詳細
メーカー:DELL
製品名:Power Connect 6248
通信速度:10/100/1000BASE-T
Boot Menu:3.3.1.10
RJ-45:48ポート
SFPコンボポート:4
筐体:440 x 387 x 43.2 mm/1U
付属品
電源ケーブル
起動ログ
Boot Menu 3.3.1.10
CPU Card ID:
/DskVol// - disk check in progress ...
/DskVol// - Volume is OK
total # of clusters: 15,147
# of free clusters: 5,513
# of bad clusters: 0
total free space: 11,026 Kb
max contiguous free space: 11,282,432 bytes
# of files: 19
# of folders: 1
total bytes in files: 19,248 Kb
# of lost chains: 0
total bytes in lost chains: 0
volume descriptor ptr (pVolDesc): 0x3903150
XBD device block I/O handle: 0x10001
auto disk check on mount: DOS_CHK_REPAIR |DOS_CHK_VERB_2
volume write mode: copyback (DOS_WRITE)
max # of simultaneously open files: 52
file descriptors in use: 0
# of different files in use: 0
# of descriptors for deleted files: 0
# of obsolete descriptors: 0
current volume configuration:
- volume label: NO LABEL ; (in boot sector: )
- volume Id: 0xc9
- total number of sectors: 60,716
- bytes per sector: 512
- # of sectors per cluster: 4
- # of reserved sectors: 1
- FAT entry size: FAT16
- # of sectors per FAT copy: 60
- # of FAT table copies: 2
- # of hidden sectors: 4
- first cluster is in sector # 136
- Update last access date for open-read-close = FALSE
- directory structure: VFAT
- file name format: 8-bit (extended-ASCII)
- root dir start sector: 121
- # of sectors per root: 15
- max # of entries in root: 240
FAT handler information:
------------------------
- allocation group size: 2 clusters
- free space on volume: 11,290,624 bytes
Boot Menu 3.3.1.10
Select an option. If no selection in 10 seconds then
operational code will start.
1 - Start operational code.
2 - Start Boot Menu.
Select (1, 2):
Operational Code Date: Tue Jun 28 09:51:34 2011
Uncompressing.....
Adding 0 symbols for standalone.
CPU: Motorola E500 : Unknown system version. Processor #0.
Memory Size: 0x10000000. BSP version 1.2/0.
Created: Jun 28 2011, 09:37:56
ED&R Policy Mode: deployed
/DskVol// - disk check in progress ...
dosChkLib : CLOCK_REALTIME is being reset to THU NOV 23 17:06:42 2006
Value obtained from file system volume descriptor pointer: 0x357dd10
The old setting was THU JAN 01 00:00:00 1970
Accepted system dates are greater than THU DEC 27 00:00:00 1990
/DskVol// - Volume is OK
total # of clusters: 15,147
# of free clusters: 5,513
# of bad clusters: 0
total free space: 11,026 Kb
max contiguous free space: 11,282,432 bytes
# of files: 19
# of folders: 1
total bytes in files: 19,248 Kb
# of lost chains: 0
total bytes in lost chains: 0
volume descriptor ptr (pVolDesc): 0x357dd10
XBD device block I/O handle: 0x10001
auto disk check on mount: DOS_CHK_REPAIR |DOS_CHK_VERB_2
volume write mode: copyback (DOS_WRITE)
max # of simultaneously open files: 52
file descriptors in use: 0
# of different files in use: 0
# of descriptors for deleted files: 0
# of obsolete descriptors: 0
current volume configuration:
- volume label: NO LABEL ; (in boot sector: )
- volume Id: 0xc9
- total number of sectors: 60,716
- bytes per sector: 512
- # of sectors per cluster: 4
- # of reserved sectors: 1
- FAT entry size: FAT16
- # of sectors per FAT copy: 60
- # of FAT table copies: 2
- # of hidden sectors: 4
- first cluster is in sector # 136
- Update last access date for open-read-close = FALSE
- directory structure: VFAT
- file name format: 8-bit (extended-ASCII)
- root dir start sector: 121
- # of sectors per root: 15
- max # of entries in root: 240
FAT handler information:
------------------------
- allocation group size: 2 clusters
- free space on volume: 11,290,624 bytes
Timebase: 66.666666 MHz, MEM: 266.666664 MHz, PCI: 66.666666 MHz, CPU: 533.333328 MHz
PCI unit 0: Dev 0xb314, Rev 0x01, Chip BCM56314_A0, Driver BCM56314_A0
PCI unit 1: Dev 0xb314, Rev 0x01, Chip BCM56314_A0, Driver BCM56314_A0
SOC unit 0 attached to PCI device BCM56314_A0
SOC unit 1 attached to PCI device BCM56314_A0
Adding BCM transport pointers
Configuring CPUTRANS TX
Configuring CPUTRANS RX
Instantiating /download as rawFs, device = 0x20001
Formatting /download for DOSFS
Instantiating /download as rawFs, device = 0x20001
Formatting.../download: file system is marked clean, skipping check
OK.
<186> NOV 23 17:06:54 0.0.0.0-1 UNKN[268434720]: bootos.c(233) 1 %% Event(0xaaaaaaaa)
Instantiating RamCP: as rawFs, device = 0x30001
Formatting RamCP: for DOSFS
Instantiating RamCP: as rawFs, device = 0x30001
RamCP:/ - disk check in progress ...
RamCP:/ - Volume is OK
total # of clusters: 1,975
# of free clusters: 1,973
# of bad clusters: 0
total free space: 1,010,176
max contiguous free space: 1,010,176 bytes
# of files: 0
# of folders: 0
total bytes in files: 0
# of lost chains: 0
total bytes in lost chains: 0
OK.
(Unit 1 - Waiting to select management unit)>
Applying Global configuration, please wait ...
Welcome to Dell Easy Setup Wizard
The Setup Wizard guides you through the initial switch configuration, and
gets you up and running as quickly as possible. You can skip the setup
wizard, and enter CLI mode to manually configure the switch. You must
respond to the next question to run the setup wizard within 60 seconds,
otherwise the system will continue with normal operation using the default
system configuration.Note: You can exit the setup wizard at any point
by entering [ctrl+z].
Would you like to run the setup wizard (you must answer this question within
60 seconds)? [Y/N]
